OVERVIEW

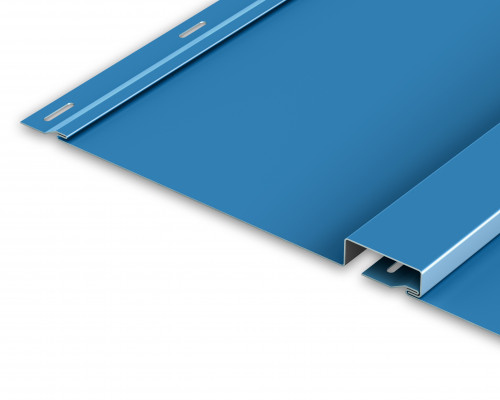

Board and Batten panels provide a timeless design aesthetic for residential and commercial projects. This profile generates clean lines and patterns and features alternating wide vertical boards and narrower 2” elevated battens. The ¾” panel depth creates dimensional interest while keeping trim offsets to a minimum. This profile is mechanically fastened through pre-punched holes. To achieve the clean look Board and Batten is known for, fasteners are concealed under the subsequent panel’s batten. Board and Batten panels have the unique ability to seamlessly blend into various architectural settings. Whether seeking a cozy and inviting facade or a bold and striking statement, Board and Batten exterior walls remain a versatile canvas for architectural creativity.

PRODUCT OPTIONS:
24 Gauge Steel
.032 Aluminum
12″, 16″- Solid colors
*Batten is 2″ wide and 3/4″ deep on all panel widths. Material usage when forming is 3 5/8″

INSTALLATION:
Board and Batten is mechanically fastened through pre-punched holes and fasteners are concealed under the subsequent panel’s batten. When installing in a wall application, the panels must be installed vertically, limiting panel lengths to 30’ for steel and 22’ for aluminum.
