200S Profile



200S Profile


OVERVIEW

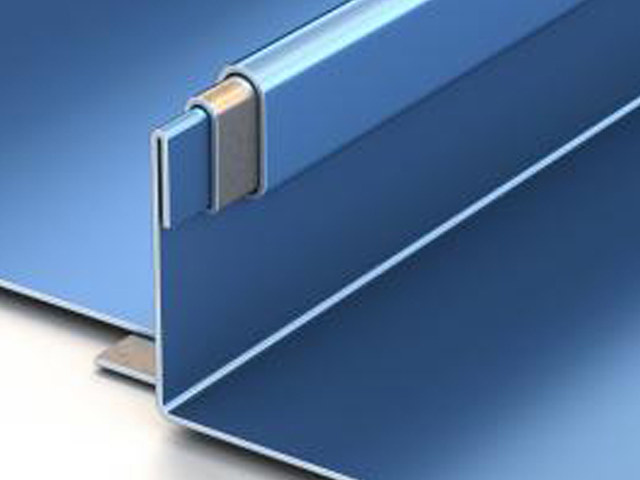

The versatility of the DMC 200S roof system makes it an ideal choice for low to steep slope applications. Performance engineered to handle heavy-duty commercial and industrial projects, this 2″ mechanically seamed structural metal roof system will meet or exceed most windload and government requirements from coast to coast. Concealed fasteners and floating clip systems reduce panel stress from changes in temperature and help maintain a smooth, uniform appearance. This product can also be curved for large barrel roofs or small canopies.

IDEAL APPLICATION
Commercial
Institutional
Structural
Open Framing
Low Slope Applications
Retro-Fit


  • PROFILE
  • WARRANTY

AVAILABLE WIDTHS:
12″, 14″, 16” or 18″
*Drexel Metals design pressures, wind uplifts and test reports are for specific deck attachments, material gauges, clip spacing and panel widths.

SUBSTRATES AVAILABLE:
• Galvalume® – 22ga and 24ga
• Drexlume® – 22ga and 24ga
• Aluminum – .040″

PROFILE OPTIONS:
• Single lock panel
• Double lock panel
• Radius panel (single or double lock)

PRODUCT OPTIONS:
Factory made or field rolled to exact lengths
Optional: striation, beads, pencil ribs
Available: Radius panel (single or double lock)

INSTALLATION:
Can be installed over open frame steel purlins, steel decking, steel decking with PolyIso or plywood decking.

SLOPE:
Minimum slope 1/2:12
Minimum Roof Pitch: 1/2:12 – low roof pitch

TESTING:
In accordance with UL, ASTM International, Miami-Dade County

• UL 580 Wind Uplift (Class 90)
• TAS 125 Wind Uplift
• UL 1897 Extended Phase Wind Uplift
• UL 2218 Class 4 Hail Impact
• UL 790 Class A Fire Rating
• UL Environmental – SRI Third Party Verified
• ASTM E592 Uniform Static Air Pressure Uplift
• ASTM E1646 Water Infiltration
• TAS 100 Wind Driven Rain
• ASTM E1680 Air Infiltration
• ASTM E1886 Missile Impact
• ASTM 2140 Static Pressure Water Head
• Miami-Dade County Approved
• Florida Building Code Approved
• Texas Department of Insurance Approval

FINISHES AND PRODUCT WARRANTY:
Available in a variety of coatings and colors by AkzoNobel. See the Drexel Metals color card for standard colors and paint specifications.

GALVALUME® SUBSTRATE:
High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
35 Year Warranty
35-Year Non Pro-rated PVDF Paint Warranty

ALUMINUM SUBSTRATE:
High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
35 Year Warranty
35-Year Non Pro-rated PVDF Paint Warranty

DREXLUME® SUBSTRATE:
Mill finished Galvalume® with a two-sided, clear acrylic finish.
25 Year Warranty
25-Year Non Pro-rated Drexlume Warranty (Acrylic Coated Galvalume)

Silicon Poly

Drexlume

PVDF Coated

PVDF & Galvalume

Warranty Data


SPEC SHEETCOLOR GUIDE

  • CADS (PDF)
  • CADS (DWG)
  • INSTALLED OVER DECKS (PDF)
  • METSHIELD (PDF)
  • PANEL RIBS (PDF)
CADS (PDF)
Plywood Box Gutter w/ Drip w/ Edge No Return

Plywood Box Gutter w/ Return w/ Flush Panel

Plywood Box Gutter w/ Return w/ Standing Seam Panel

Plywood Box Gutter w/ Return

Plywood Curb

Plywood Drip Edge Peak

Plywood Drip Edge w/ Flush Panel

Plywood Drip Edge w/ Standing Seam Panel

Plywood Drip Edge

Plywood Eave w/ Flush Panel

Plywood Eave w/ Standing Seam Panel

Plywood Gable Alternate Curved

Plywood Gable

Plywood Headwall

Plywood Installation Detail for NOA

Plywood Installation Detail

Plywood Peak

Plywood Pipe Flashing Detail

Plywood Pipe Flashing Pan

Plywood Rakewall

Plywood Ridge-Hip

Plywood Transition

Plywood Valley w/ Diverter

Plywood Valley w/o Diverter

Plywood Valleywall

Plywood Vented Ridge Corr A Vent

Plywood Vented Ridge

Metal Deck Box Gutter w/ Return w/ Flush Panel

Metal Deck Curb

Metal Deck Drip Edge Peak

Metal Deck Drip Edge w/ Flush Panel

Metal Deck Eave w/ Flush Panel

Metal Deck Gable Alternate Curved

Metal Deck Gable

Metal Deck Headwall

Metal Deck Installation Detail

Metal Deck Peak

Metal Deck Pipe Flashing Detail

Metal Deck Pipe Flashing Pan

Metal Deck Rakewall

Metal Deck Ridge-Hip

Metal Deck Transition

Metal Deck Valley w/ Diverter

Metal Deck Valley w/o Diverter

Metal Deck Valleywall

Metal Deck ISO Box Gutter w/ Return w/ Flush Panel

Metal Deck ISO Box Gutter w/ Return w/ Standing Seam Panel

Metal Deck ISO Curb

Metal Deck ISO Drip Edge Peak

Metal Deck ISO Drip Edge w/ Flush Panel

Metal Deck ISO Drip Edge w/ Standing Seam Panel

Metal Deck ISO Gable Alternate Curved

Metal Deck ISO Gable

Metal Deck ISO Headwall

Metal Deck ISO Installation Detail

Metal Deck ISO Peak

Metal Deck ISO Pipe Flashing Detail

Metal Deck ISO Pipe Flashing Pan

Metal Deck ISO Rakewall

Metal Deck ISO Ridge-Hip

Metal Deck ISO Transition

Metal Deck ISO Valley w/ Diverter

Metal Deck ISO Valley w/o Diverter

Metal Deck ISO Valleywall

Open Frame High Side Fixed Box Gutter w/ Return w/ Flush Panel

Open Frame High Side Fixed Box Gutter w/ Return w/ Standing Seam Panel

Open Frame High Side Fixed Curb Detail

Open Frame High Side Fixed Drip Edge w/ Flush Panel

Open Frame High Side Fixed Drip Edge w/ Standing Seam Panel

Open Frame High Side Fixed Eave w/ Flush Panel

Open Frame High Side Fixed Eave w/ Standing Seam Panel

Open Frame High Side Fixed Expansion Joint

Open Frame High Side Fixed Gable Alternate Curved

Open Frame High Side Fixed Gable

Open Frame High Side Fixed Headwall

Open Frame High Side Fixed Installation Detail

Open Frame High Side Fixed Peak

Open Frame High Side Fixed Pipe Flashing Detail

Open Frame High Side Fixed Rakewall

Open Frame High Side Fixed Ridge-Hip

Open Frame High Side Fixed Transition

Open Frame High Side Fixed Valley w/ Diverter

Open Frame High Side Fixed Valley w/o Diverter

Open Frame High Side Fixed Valleywall

Open Frame High Side Fixed Vented Ridge

Open Frame Low Side Fixed Box Gutter w/ Return w/ Flush Panel

Open Frame Low Side Fixed Box Gutter w/ Return w/ Standing Seam Panel

Open Frame Low Side Fixed Curb Detail

Open Frame Low Side Fixed Eave w/ Flush Panel

Open Frame Low Side Fixed Eave w/ Standing Seam Panel

Open Frame Low Side Fixed Expansion Joint

Open Frame Low Side Fixed Gable Alternate Curved

Open Frame Low Side Fixed Gable

Open Frame Low Side Fixed Headwall

Open Frame Low Side Fixed Installation Detail

Open Frame Low Side Fixed Peak

Open Frame Low Side Fixed Pipe Flashing Detail

Open Frame Low Side Fixed Rakewall

Open Frame Low Side Fixed Step Headwall

Open Frame Low Side Fixed Step Ridge-Hip

Open Frame Low Side Fixed Step Transition

Open Frame Low Side Fixed Step Valley

Open Frame Low Side Fixed Step Valleywall

Open Frame Low Side Fixed Step Vented Ridge-Hip

CADS (DWG)
Plywood Box Gutter w/ Drip w/ Edge No Return

Plywood Box Gutter w/ Return w/ Flush Panel

Plywood Box Gutter w/ Return

Plywood Curb

Plywood Drip Edge Peak

Plywood Drip Edge w/ Flush Panel

Plywood Drip Edge

Plywood Eave w/ Flush Panel

Plywood Gable Alternate Curved

Plywood Gable

Plywood Headwall

Plywood Installation Detail

Plywood Peak

Plywood Pipe Flashing Detail

Plywood Pipe Flashing Pan

Plywood Rakewall

Plywood Ridge-Hip

Plywood Transition

Plywood Valley w/ Diverter

Plywood Valley w/o Diverter

Plywood Valleywall

Plywood Vented Ridge Corr A Vent

Plywood Vented Ridge

Metal Deck Box Gutter w/ Return w/ Flush Panel

Metal Deck Curb

Metal Deck Drip Edge Peak

Metal Deck ISO Drip Edge w/ Flush Panel

Metal Deck Eave w/ Flush Panel

Metal Deck Gable Alternate Curved

Metal Deck Gable

Metal Deck Headwall

Metal Deck Installation Detail

Metal Deck Peak

Metal Deck Pipe Flashing Detail

Metal Deck Pipe Flashing Pan

Metal Deck Rakewall

Metal Deck Ridge-Hip

Metal Deck Transition

Metal Deck Valley w/ Diverter

Metal Deck Valley w/o Diverter

Metal Deck Valleywall

Metal Deck ISO Box Gutter w/ Return w/ Flush Panel

Metal Deck ISO Curb

Metal Deck ISO Drip Edge w/ Flush Panel

Metal Deck ISO Eave w/ Flush Panel

Metal Deck ISO Gable Alternate Curved

Metal Deck ISO Gable

Metal Deck ISO Headwall

Metal Deck ISO Installation Detail

Metal Deck ISO Peak

Metal Deck ISO Pipe Flashing Detail

Metal Deck ISO Pipe Flashing Pan

Metal Deck ISO Rakewall

Metal Deck ISO Ridge-Hip

Metal Deck ISO Transition

Metal Deck ISO Valley w/ Diverter

Metal Deck ISO Valley w/o Diverter

Metal Deck ISO Valleywall

Open Frame High Side Fixed Box Gutter w/ Return w/ Flush Panel

Open Frame High Side Fixed Curb Detail

Open Frame High Side Fixed Drip Edge w/ Flush Panel

Open Frame High Side Fixed Expansion Joint

Open Frame High Side Fixed Gable Alternate Curved

Open Frame High Side Fixed Gable

Open Frame High Side Fixed Headwall

Open Frame High Side Fixed Installation Detail

Open Frame High Side Fixed Peak

Open Frame High Side Fixed Pipe Flashing Detail

Open Frame High Side Fixed Rakewall

Open Frame High Side Fixed Ridge-Hip

Open Frame High Side Fixed Transition

Open Frame High Side Fixed Valley w/ Diverter

Open Frame High Side Fixed Valley w/o Diverter

Open Frame High Side Fixed Valleywall

Open Frame High Side Fixed Vented Ridge

Open Frame Low Side Fixed Box Gutter w/ Return w/ Flush Panel

Open Frame Low Side Fixed Curb Detail

Open Frame Low Side Fixed Eave w/ Flush Panel

Open Frame Low Side Fixed Expansion Joint

Open Frame Low Side Fixed Gable Alternate Curved

Open Frame Low Side Fixed Gable

Open Frame Low Side Fixed Installation Detail

Open Frame Low Side Fixed Peak

Open Frame Low Side Fixed Pipe Flashing Detail

Open Frame Low Side Fixed Rakewall

Open Frame Low Side Fixed Step Headwall

Open Frame Low Side Fixed Step Ridge-Hip

Open Frame Low Side Fixed Step Transition

Open Frame Low Side Fixed Step Valley

Open Frame Low Side Fixed Step Valleywall

Open Frame Low Side Fixed Step Vented Ridge-Hip

INSTALLED OVER DECKS (PDF)
